1.
GENERAL PRESENTATION
1.1

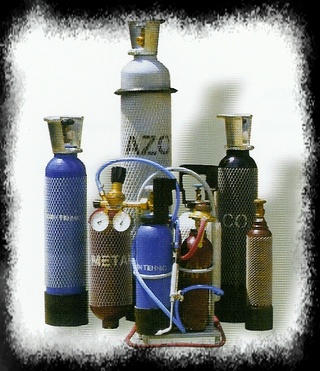

USE OF THE CYLINDERS
Are used to store compressed, liquefied or dissolved gases under
pressure .
1.2

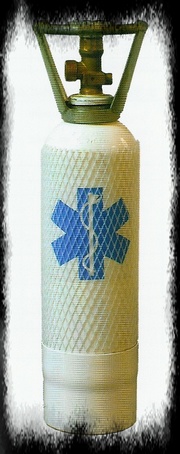

CONSTRUCTION
The cylinder is equipped with safety membrane which assures the
protection of the valve and rubber rings to protect of cylinder.
CYLINDER
The material for cylinder is allied steel or aluminum alloy,
specific for high-pressure gas cylinders.
The anticorrosive protection is assured by painting in
electrostatic field.
VALVE
The material for valve is brass.
2.
TECHNICAL CHARACTERISTICS
| Admissible temperature |
-40º
C...+55º
C |
| Warranty term |
12 month |
| Validity term |
10 years |
3.
SPECIFIC TECHNICAL CHARACTERISTICS
Water capacity
[liters] |
Gas capacity
[Nm3](compressed gases) |
Gas capacity
[Kg]
(liquefied gases) |
Outside Diam
[mm] |
Weight
[Kg] |
Total high
H
[mm] |
| |
|
|
|
Steel |
Al |
Steel |
Al |
| 2 |
0.4 |
1.5 |
114 |
4.5 |
3.5 |
395 |
400 |
| 3 |
0.6 |
2.25 |
114 |
5.7 |
4.5 |
505 |
540 |
| 4 |
0.8 |
3 |
140 |
7.9 |
5.2 |
502 |
490 |
| 6 |
1.2 |
4.5 |
140 |
11.5 |
6.4 |
660 |
750 |
| 8 |
1.6 |
6 |
140 |
13.9 |
8.2 |
815 |
850 |
| 10 |
2 |
7.5 |
168 |
14.3 |
11.2 |
745 |
750 |
| 12 |
2.4 |
9 |
168 |
19.1 |
12.8 |
835 |
990 |
| 14 |
2.8 |
10.5 |
168 |
22.8 |
14.4 |
985 |
1020 |
| 20 |
4 |
15 |
229 |
31.2 |
- |
705 |
- |
| 25 |
5 |
18.75 |
229 |
36.5 |
- |
840 |
- |
| 30 |
6 |
22.5 |
229 |
41.4 |
- |
990 |
- |
| 40 |
8 |
30 |
229 |
52 |
- |
1380 |
- |
| 50 |
10 |
37.5 |
229 |
59 |
- |
1620 |
- |
|
-
COMPRESSED GAS CYLINDERS
