Are
used to extinguish fires beginning of A, B classes. In open or
closed spaces.
Fuel stations, storehouses, warehouses,
shops, thermal stations, ships, vans, etc.
Do not use on electrical equipment.
2.
EXTIGUISHING AGENT
Syntactic foam,
type AFFF. The foam is certificated by certified body and
laboratory, compulsory condition to produce and sell these kind
of products.
3.
TECHNICAL CHARACTERISTICS
| Control pressure |
On manometer |
Warranty term |
12 months |
| Admissible temperature |
0°C ... +60°C |
Validity term |
3 years |
| High extinguishing
efficiency |
Easy maintenance |
| Easy operation |
Propellant gas is
nitrogen (N2) |
| Not dangerous for human
health or environmental field |
Recharge after use |
4.
SPECIFIC TECHNICAL CHARACTERISTICS
|
Type of extinguisher |
SM3 |

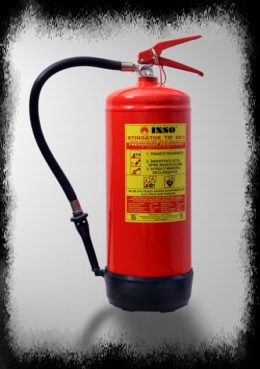

SM6 |
SM9 |
|
FOAM SOLUTIN QUANTITY
(KG) |
3 |
6 |
9 |
|
FIRE
RATING AB |
17A/70B |
27A/144B |
34A/183B |
|
HEIGHT (mm) |
430 |
510 |
630 |
|
DIAMETER (mm) |
130 |
160 |
160 |
|
TOTAL
WEIGHT (kq) |
5,60 |
9,90 |
13,20 |
|
WORKING PRESSURE (bar) |
14 |
14 |
14 |
|
TEST
PRESSURE (bar) |
25 |
25 |
25 |
-

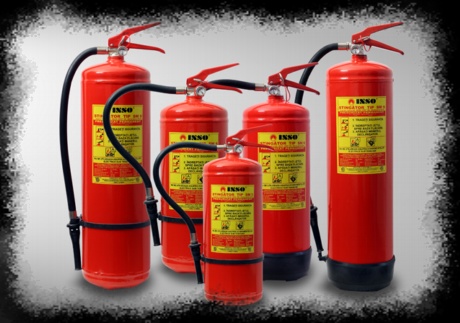

PORTABLE FOAM EXTINGUISHERS STORED PRESSURE
