1.
USE OF THE EXTINGUISHERS
Are used
to extinguish fires beginning of A, B and C classes in open or
closed spaces. Cars, fuel stations, storehouses, warehouses, shops,
thermal stations, ships, vans, etc.
Can be used on electrical equipments up to
1000 V.
2.
EXTIGUISHING AGENT
Universal
powder ABC or powder BC.
Both types of powder are certificated by
certified body and laboratory, compulsory condition to produce and
sell these kind of products.
3.
TECHNICAL CHARACTERISTICS
| Control pressure |
On manometer |
Warranty term |
12 months |
| Admissible temperature |
-20°C ... +60°C |
Validity term |
5 years |
| High extinguishing
efficiency |
Easy maintenance |
| Easy operation |
Propellant gas is
nitrogen (N2) |
| Not dangerous for human
health or environmental field |
Recharge after use |
4.
SPECIFIC TECHNICAL CHARACTERISTICS
| Type of
extinguisher |
P1 |
P2 |
P3 |
P4 |

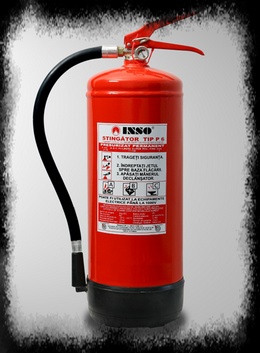

P6 |
P9 |
P12 |
| Powder
Quantity (kq) |
1 |
2 |
3 |
4 |
6 |
9 |
12 |
|
FIRE
RATING |
ABC |
5A/ 21 B/C |
8A/ 34B/C |
13A/ 55B/C |
17A/ 70B/C |
27A/ 144B/C |
34A/ 183B/C |
43A/
233B/C |
| BC |
21 B/C |
34B/C |
55B/C |
70B/C |
144B/C |
183B/C |
233B/C |
| HEIGHT (mm) |
320 |
330 |
430 |
520 |
510 |
630 |
660 |
| DIAMETER
(mm) |
80 |
130 |
130 |
130 |
160 |
160 |
190 |
| TOTAL WEIGHT (kq) |
2,20 |
4,20 |
5,60 |
6,70 |
9,90 |
13,20 |
17,60 |
| WORKING
PRESSURE(bar) |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
| TEST PRESSURE
(bar) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
-

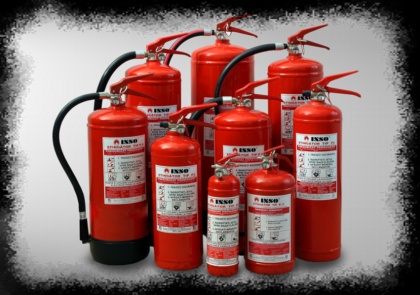

PORTABLE DRY POWDER EXTINGUISHERS STORED PRESSURE
