1.
USE OF THE EXTINGUISHERS
Are used to extinguish fires beginning of A, B and C classes .
Maximum efficiency in large spaces with high potential risk of
burning.
In open or closed spaces. Fuel stations,
storehouses, warehouses, shops, thermal stations, ships, etc.
Can be used on electrical equipments up to
1000 V.
Easy to handle by a single person. The
powder jet is strong enough to get best results in extinguishing
action even by a person less experimented.
2.
EXTIGUISHING AGENT
Universal powder ABC or powder BC.
Both types of powder are certificated by certified body and
laboratory, compulsory condition to produce and sell these kinds of
products.
3.
TECHNICAL CHARACTERISTICS
| Control pressure |
On manometer |
Warranty term |
12 months |
| Admissible temperature |
-20°C ... +60°C |
Validity term |
5 years |
| High extinguishing
efficiency |
Easy maintenance |
| Easy operation |
Propellant gas is
nitrogen (N2) |
| Not dangerous for human
health or environmental field |
Recharge after use |
4.
SPECIFIC TECHNICAL CHARACTERISTICS
| Type of extinguisher |
P20 |
P50 |
P100 |
| Powder Quantity (kq) |
20 |
50 |
100 |
| FIRE RATING |
ABC |
ABC |
ABC |
| BC |
BC |
BC |
| HEIGHT (mm) |
100 |
1100 |
1270 |
| DIAMETER
(mm) |
300 |
300 |
400 |
| TOTAL WEIGHT (kq) |
32 |
72 |
127 |
| WORKING PRESSURE (bar) |
14 |
14 |
14 |
| TEST PRESSURE
(bar) |
25 |
25 |
25 |
|
-

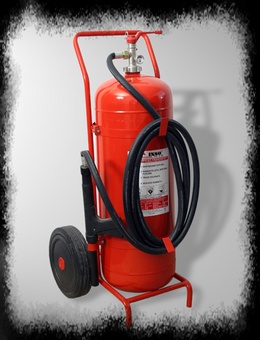

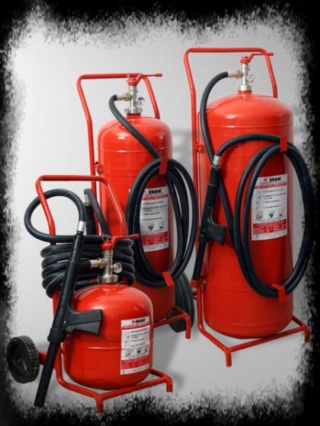

MOBILE DRY POWDER FIRE EXTINGUISHERS STORED PRESSURE
