Are used to extinguish fires beginning of B and C classes . In
open or closed spaces.
On fires generated of electricity.
On computers, phone stations, rooms with
electrical and electronically apparatus, transformers, etc.
2.
GENERAL INFORMATIONS
Simple structure, good extinguishing capacity. Extinguish agent
is CO2.
CO2 agent can exclude the air from the
burning object and quickly lower the temperature to stop
burning..
3.
TECHNICAL CHARACTERISTICS
|
Test pressure |
250 |
Warranty term |
12 months |
| Admissible temperature |
-10°C ... +60°C |
Validity term |
10 years |
|
Bursting pressure of
safety membrane (bar) |
175... 220 |
| Easy operation |
Easy maintenance |
| Not dangerous for human
health or environmental field |
Recharge after use |
4.
SPECIFIC TECHNICAL CHARACTERISTICS
|
Type of extinguisher |
G2 |
G5 |
|
QUANTITY OF CO2 (kg) |
2 |
5 |
|
FEELING RATIO (kg/l) |
0,75 |
0,75 |
|
FIRE RATING BC |
21 B/C |
55 B/C |
|
HEIGHT (mm) |
510 |
660 |
|
DIAMETER (mm) |
114 |
140 |
|
TOTAL WEIGHT
(kq) |
7 |
19 |
|
MINIMAL WALL THICKNESS OF THE CYLINDER
(mm) |
4,5 |
5,5 |
|
DESCHARGE TIME (Sec.) |
>=8 |
>=9 |
|
JET LENGTH (m) |
1,5 |
2 |
-

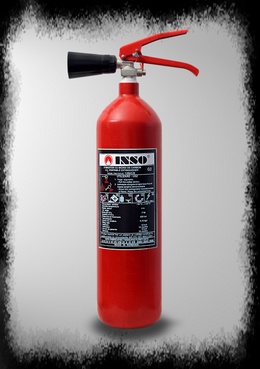

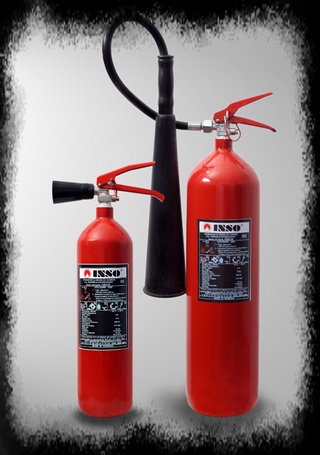

CO2 PORTABLE FIRE EXTINGUISHER
